Product Description

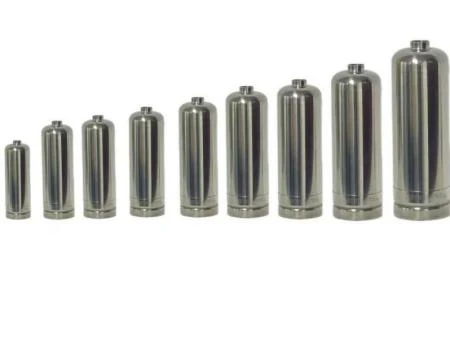

The stainless steel fire extinguisher cylinder is made from high-quality stainless steel, ensuring durability and reliability from the source.
The stainless steel fire extinguisher cylinder adopts advanced manufacturing techniques to guarantee the seamless connection, eliminating the risk of leakage.
The different capacity cylinders of these stainless steel fire extinguisher are designed with full consideration of the actual usage scenarios.
Product Specification
|
Stainless Steel Fire Extinguisher Cylinder |
|||||||||
|
Model |
F01 |
F02 |
F03 |
F04 |
F4.5 |
F05 |
F06 |
F09 |
F12 |
|
Out-diameter(mm) |
Φ85 |
Φ108 |
Φ120 |
Φ130 |
Φ140 |
Φ153 |
Φ162 |
Φ180 |
Φ180 |
|
Cylinder high(mm) |
280 |
340 |
425 |
430 |
460 |
415 |
420 |
530 |
620 |
|
Volume(L) |
1.3L |
2.65L |
4.1L |
5L |
6.25L |
6.3L |
7.6L |
11.8L |
15L |
|
Working pressure(Bar) |
14 |
14 |
14 |
14 |
14 |
14 |
14 |
14 |
14 |
|
Test pressure(Bar) |
28 |
28 |
28 |
28 |
28 |
28 |
28 |
28 |
28 |
|
Temperature range(℃) |
-30℃ ~ +60℃ |
-30℃ ~ +60℃ |
-30℃ ~ +60℃ |
-30℃ ~ +60℃ |
-30℃ ~ +60℃ |
-30℃ ~ +60℃ |
-30℃ ~ +60℃ |
-30℃ ~ +60℃ |
-30℃ ~ +60℃ |
|
Neck thread |
M24x1.5 |
M30x1.5 |
M30x1.5 |
M30x1.5 |
M30x1.5 |
M30x1.5 |
M30x1.5 |
M30x1.5 |
M30x1.5 |
|
Thickness(mm) |
1 |
1.1 |
1.2 |
1.2 |
1.2 |
1.2 |
1.2 |
1.2 |
1.2 |
The selling points and features of the stainless steel fire extinguisher cylinder
- It has strong anti-corrosion and anti-oxidation capabilities.
- The cylinder has no welding gap, a more stable structure and stronger pressure resistance.
- Customization services are available, different logos could be designed according to customer requirements
- After undergoing water pressure tests, air tightness tests, its performance is more stable and reliable.
- The bottom ring is sleeved onto the cylinder body for added stability.
